Product Profile

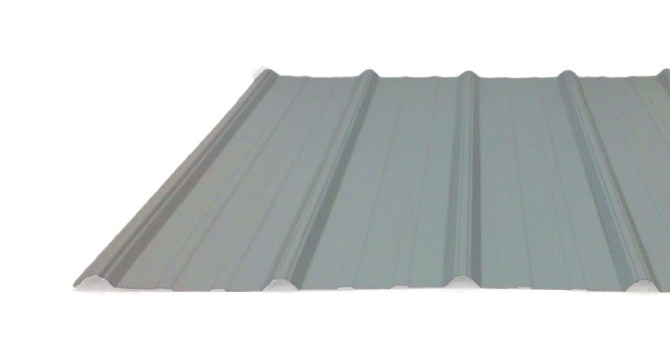

9-36 Panel
The 9-36 profile is designed specifically with the agricultural industry in mind. The 9-36 profile is the most economical roofing and siding panel we carry, making it the perfect choice for shops, barns, and storage buildings.
Specifications
| Use | Roof / Wall / Liner |
| Slope | 3/12 and greater |
| Coverage | 36″ wide |
| Length | 3′ to 45′ |
| Rib Height | 3/4″ on 9″ centers |
| Fastener System | Exposed Fastener |
| Recommended Substrate | Open Framing or Solid Substrate |
Profile Diagram
Cross-section dimensions — click image to enlarge
Recommended Accessories & Fastener Pattern
Closures
- LP 9-36 Large Tab (Vented)
- 9-36 Large Tab
- 9-36 Small Tab
Fasteners
- MG #10×1.5″ (wood)
- MG #10×2″ (wood)
- MD #12 (metal)
- ST #14×7/8″ (laps)
Miscellaneous
- Butyl Tape
- Roof Boots
- X Seal
- Metal Roof Sealant
- Synthetic Underlayment

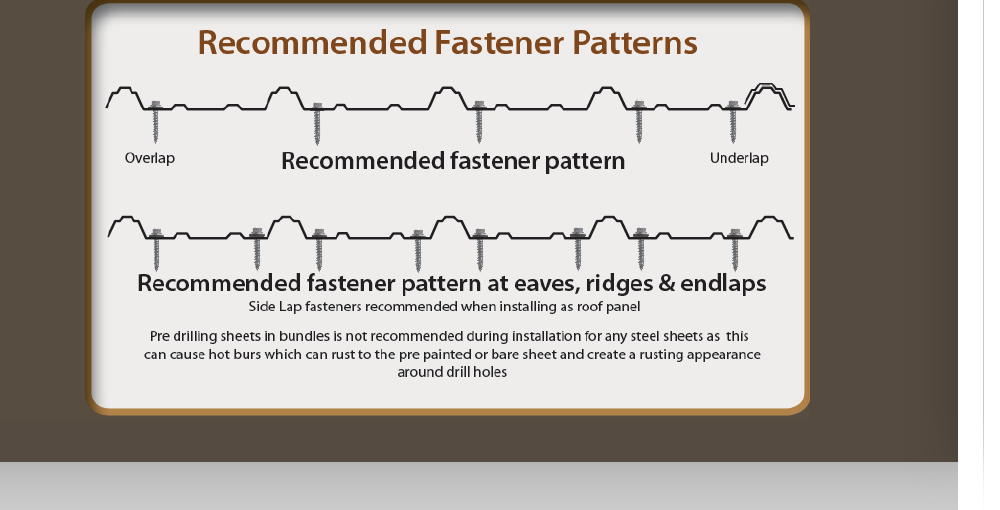

Fastener pattern — click image to enlarge
Colors
The 9-36 Panel is available in Fordham Manufacturing’s full range of standard roofing and siding colors in 29 and 26 gauge material. Our finishes are built to resist fading, chalking and the elements for years of dependable service. View the complete color chart to find the right match for your project.
Downloads
For full product details, trim options and accessory specifications, download the complete Fordham Manufacturing product catalog.
Related Profiles
R Panel
The panel of choice for industrial and commercial metal roofing and siding applications.
R Panel Reverse
An excellent choice for exterior walls on pre-engineered, insulated metal buildings.
Ready to start your project?
Contact our team for pricing, lead times and expert guidance on the 9-36 Panel profile.
