Product Profile

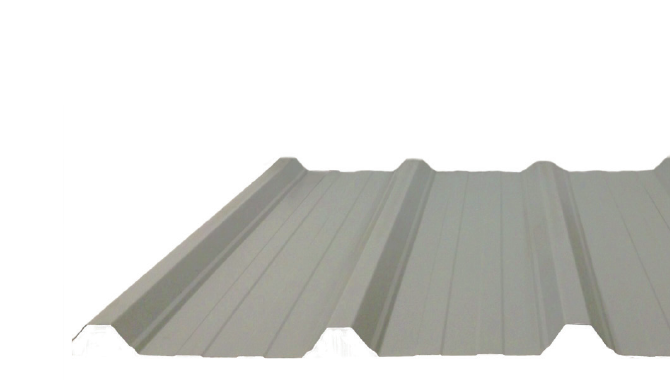

R Panel
The R Panel profile is the panel of choice for industrial and commercial metal roofing and siding applications, and is an excellent choice for pre-engineered metal buildings. The R Panel profile provides the strength and durability to withstand the toughest conditions and is ideal for slopes as low as 1/12.
Specifications
| Use | Roof / Wall |
| Slope | As low as 1/12 |
| Coverage | 36″ wide |
| Length | 3′ to 45′ |
| Rib Height | 1.25″ on 12″ centers |
| Fastener System | Exposed Fastener |
| Recommended Substrate | Open Framing or Solid Substrate |
Profile Diagram
Cross-section dimensions — click image to enlarge
Recommended Accessories & Fastener Pattern
Closures
- LP R Large Tab (Vented)
- R Panel Large Tab
- R Panel Small Tab
Fasteners
- MG #10×1.5″ (wood)
- MG #10×2″ (wood)
- MD #12 (metal)
- ST #14×7/8″ (laps)
Miscellaneous
- Butyl Tape
- Roof Boots
- X Seal
- Metal Roof Sealant
- Synthetic Underlayment
Fastener pattern — click image to enlarge
Colors
The R Panel is available in Fordham Manufacturing’s full range of standard roofing and siding colors in 29 and 26 gauge material. Our finishes are built to resist fading, chalking and the elements for years of dependable service. View the complete color chart to find the right match for your project.
Downloads
For full product details, trim options and accessory specifications, download the complete Fordham Manufacturing product catalog.
Related Profiles
R Panel Reverse
An excellent choice for exterior walls on pre-engineered, insulated metal buildings.
9-36 Panel
The most economical roofing and siding panel, ideal for shops, barns and storage buildings.
