Product Profile
R Panel Reverse

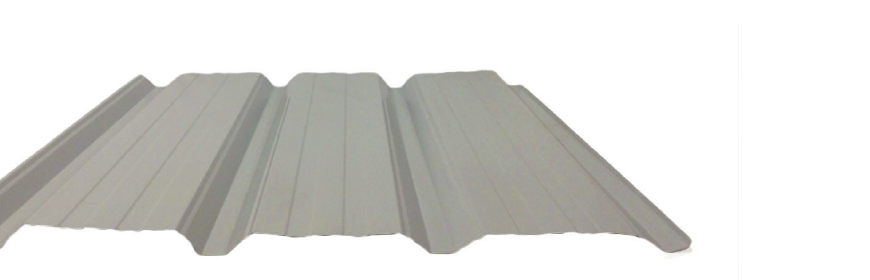

The R Panel Reverse profile is an excellent choice for exterior walls on pre-engineered, insulated metal buildings. The unique profile allows the panel to compress any pre-engineered drape insulation while causing minimal distortion to the panel itself.
Specifications
| Use | Wall / Liner |
| Coverage | 36″ wide |
| Length | 3′ to 45′ |
| Rib Height | 1.25″ reverse rib on 12″ centers |
| Fastener System | Exposed Fastener |
| Recommended Substrate | Open Spacing or Solid Substrate |
Profile Diagram
Cross-section dimensions — click image to enlarge
Recommended Accessories & Fastener Pattern
Closures
- R Panel Large Tab
- R Panel Small Tab
Fasteners
- MG #10×1.5″ (wood)
- MG #10×2″ (wood)
- MD #12 (metal)
- ST #14×7/8″ (laps)
Miscellaneous
- Butyl Tape
- Roof Boots
- X Seal
- Metal Roof Sealant
- Synthetic Underlayment

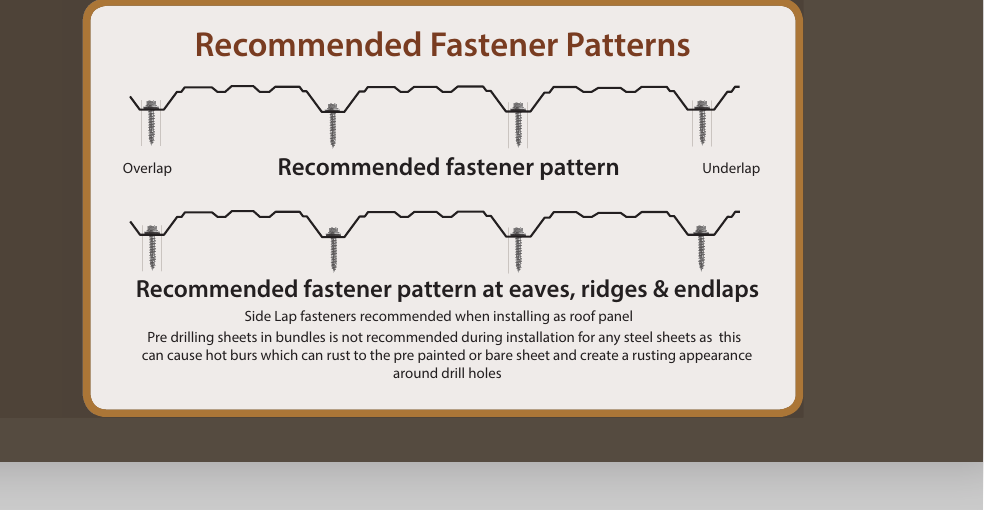

Fastener pattern — click image to enlarge
Colors
The R Panel Reverse is available in Fordham Manufacturing’s full range of standard roofing and siding colors in 29 and 26 gauge material. Our finishes are built to resist fading, chalking and the elements for years of dependable service. View the complete color chart to find the right match for your project.
Downloads
For full product details, trim options and accessory specifications, download the complete Fordham Manufacturing product catalog.
