About Our Trim & Accessories
Fordham Manufacturing produces a comprehensive line of steel trim and flashing to complete any roofing or siding installation. Stock trim comes in standard 10’-3” lengths, with custom lengths available up to 20’-3”. All trim is produced in any of Fordham’s stock colors and gauges, matching your panel selection perfectly.

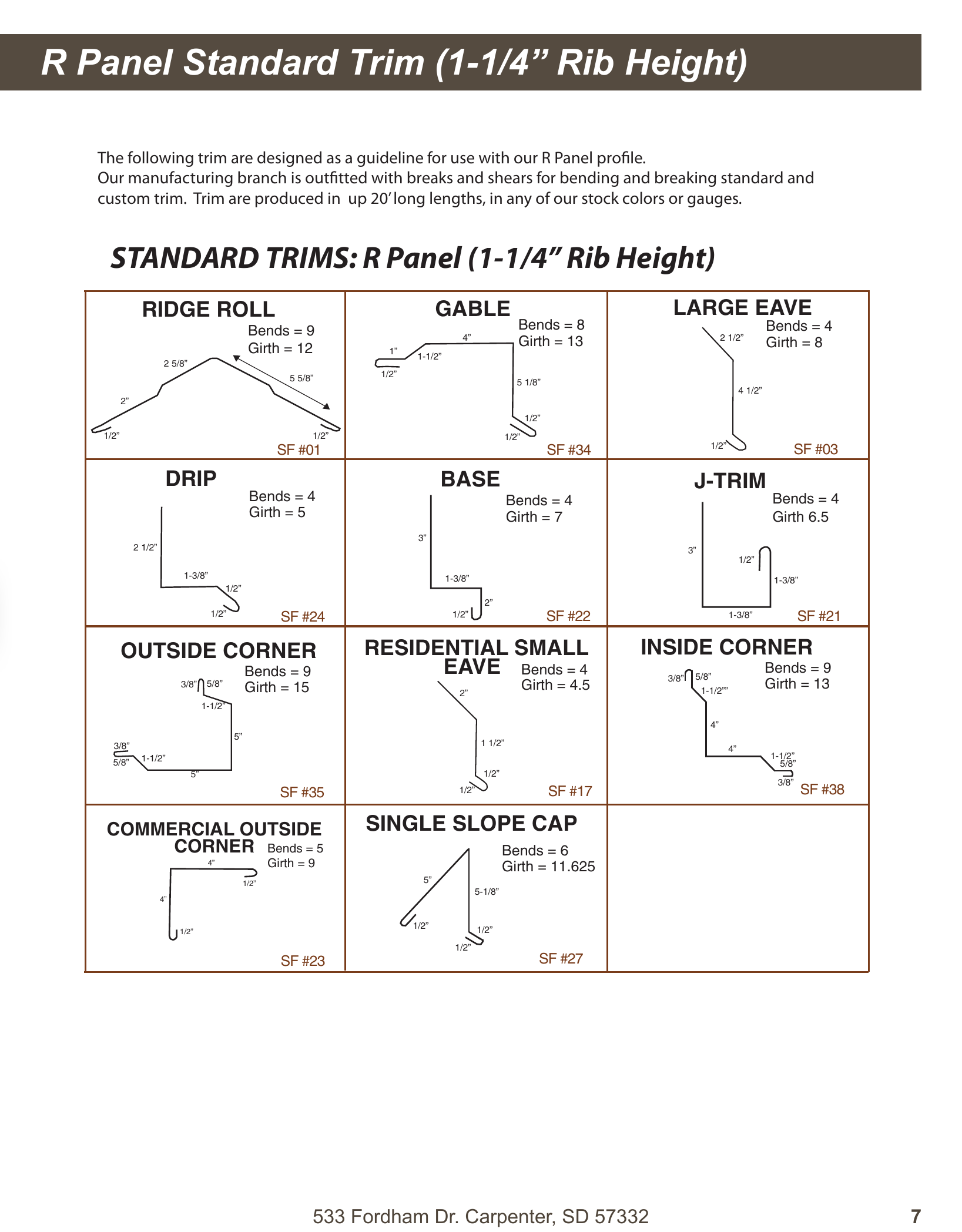

R Panel Standard Trim (1-1/4” Rib Height)
The following trim profiles are designed for use with the R Panel profile. Includes Ridge Roll, Gable, Large Eave, Drip, Base, J-Trim, Outside Corner, Residential Small Eave, Inside Corner, Commercial Outside Corner, and Single Slope Cap.
R Panel standard trim profiles — click image to enlarge

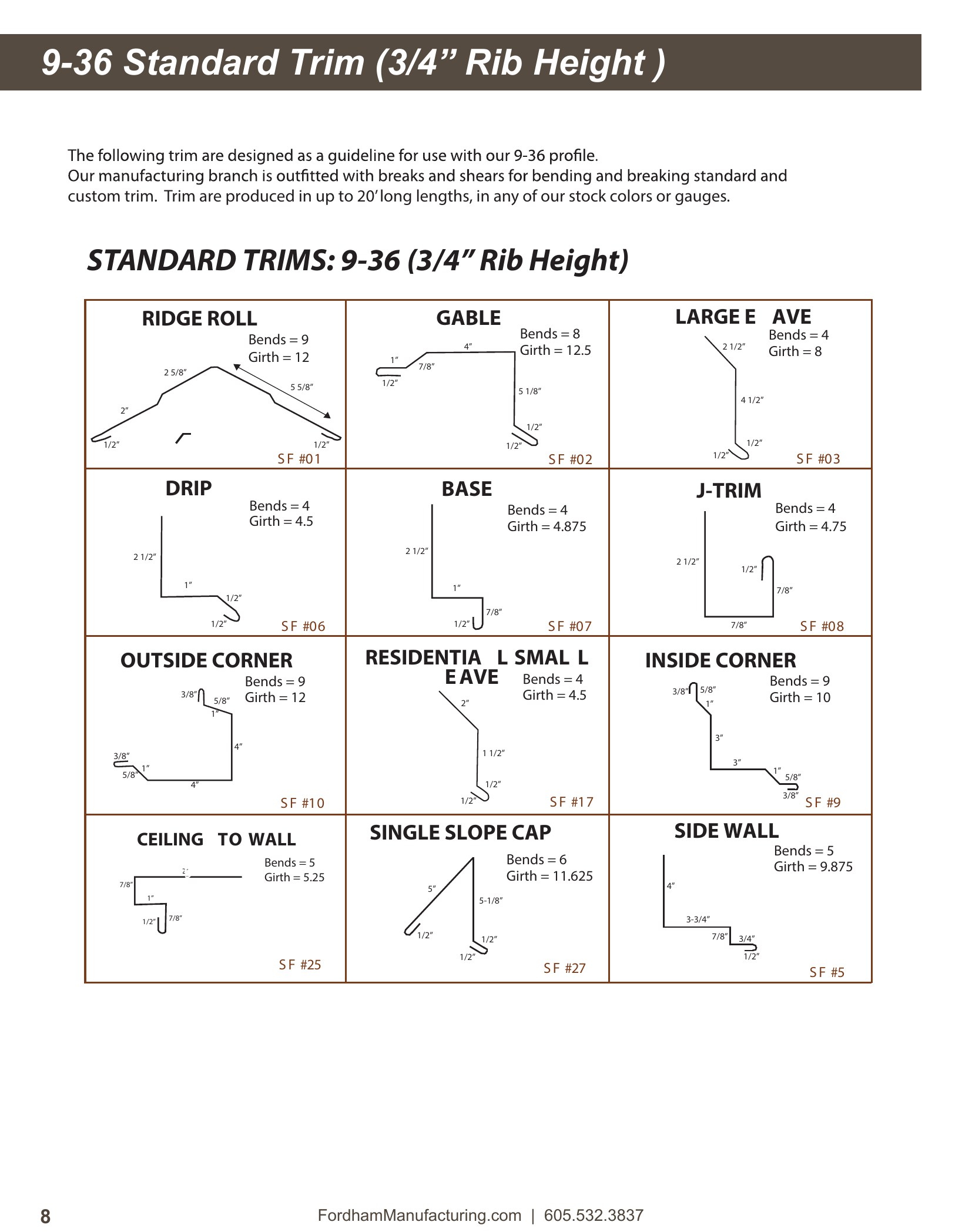

9-36 Standard Trim (3/4” Rib Height)
These trim profiles are designed for use with the 9-36 panel. Includes Ridge Roll, Gable, Large Eave, Drip, Base, J-Trim, Outside Corner, Residential Small Eave, Inside Corner, Ceiling-to-Wall, Single Slope Cap, and Side Wall.
9-36 standard trim profiles — click image to enlarge

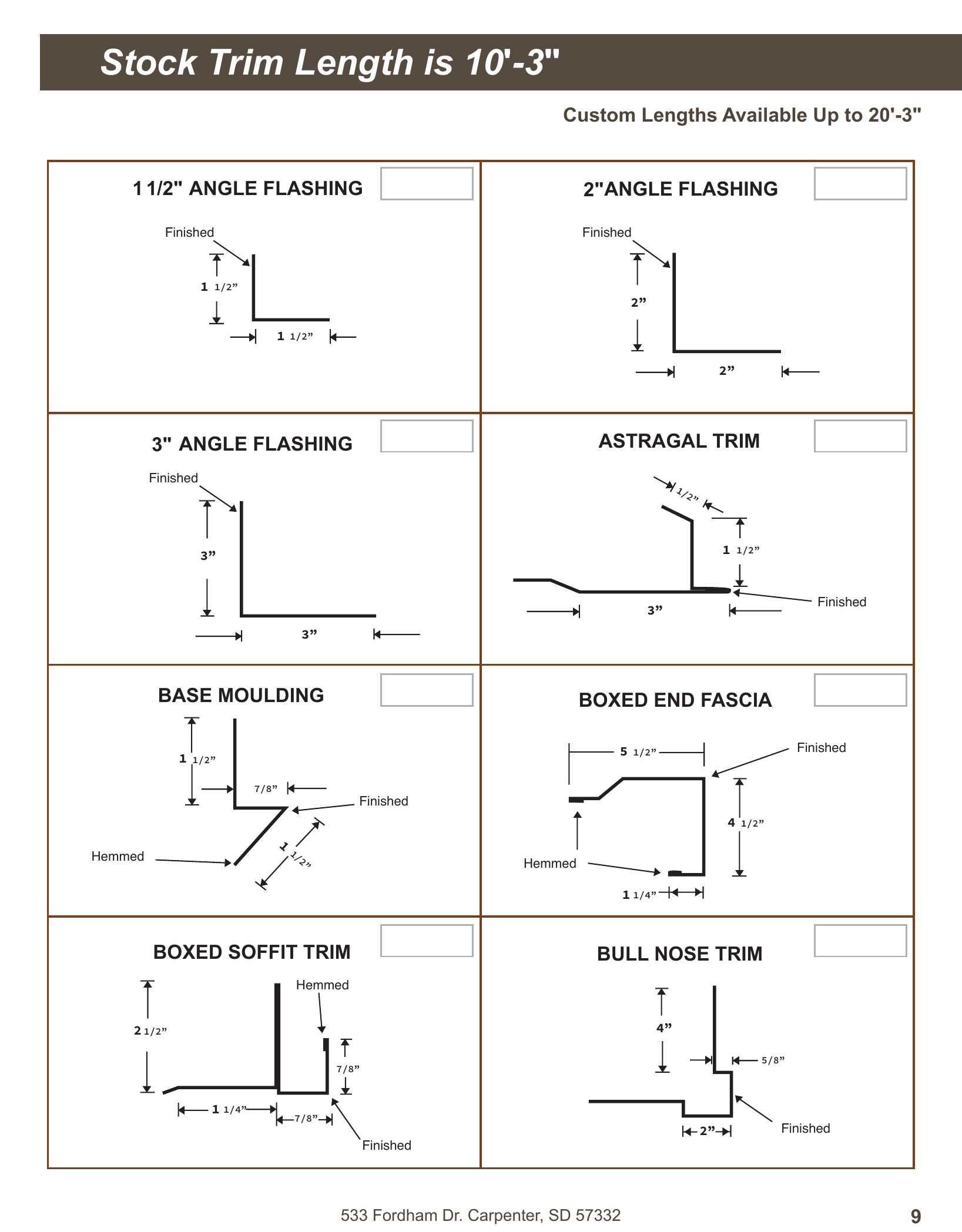

Stock Trim & Flashing — Angle Flashings, Fascia & Specialty Trim
Stock trim in 10’-3” standard lengths. Shown: 1-1/2” Angle Flashing, 2” Angle Flashing, 3” Angle Flashing, Astragal Trim, Base Moulding / Rat Guard, Boxed End Fascia, Boxed Soffit Trim, Bull Nose Trim.
Angle flashings and specialty trim profiles — click image to enlarge
Stock Trim & Flashing — Corner Trim, Door Trim & Ridge
Shown: Classic Corner Trim, Classic Rake Trim, Classic Ridge Cap, Door Header, 3-1/4” Door Jamb, 7” Door Jamb Trim, 9” Door Jamb Trim, 7” Door Trim.
Corner trim, door trim and ridge profiles — click image to enlarge

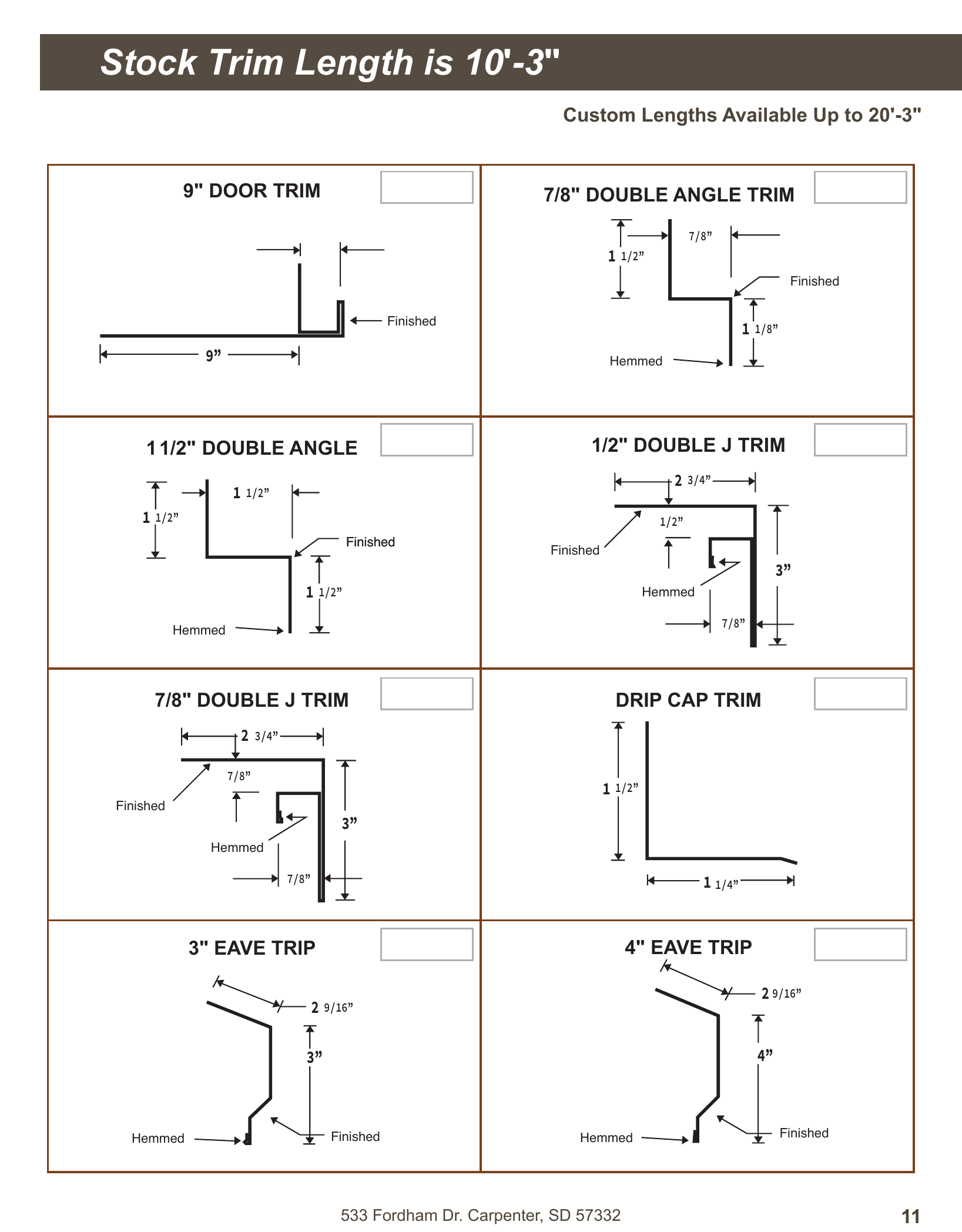

Stock Trim & Flashing — Door Trim, Double Angle, Double J & Eave Trim
Shown: 9” Door Trim, 7/8” Double Angle Trim, 1-1/2” Double Angle Trim, 1/2” Double J Trim, 7/8” Double J Trim, Drip Cap Trim, 3” Eave Trim, 4” Eave Trim.
Door trim, double angle, double J trim and eave trim — click image to enlarge

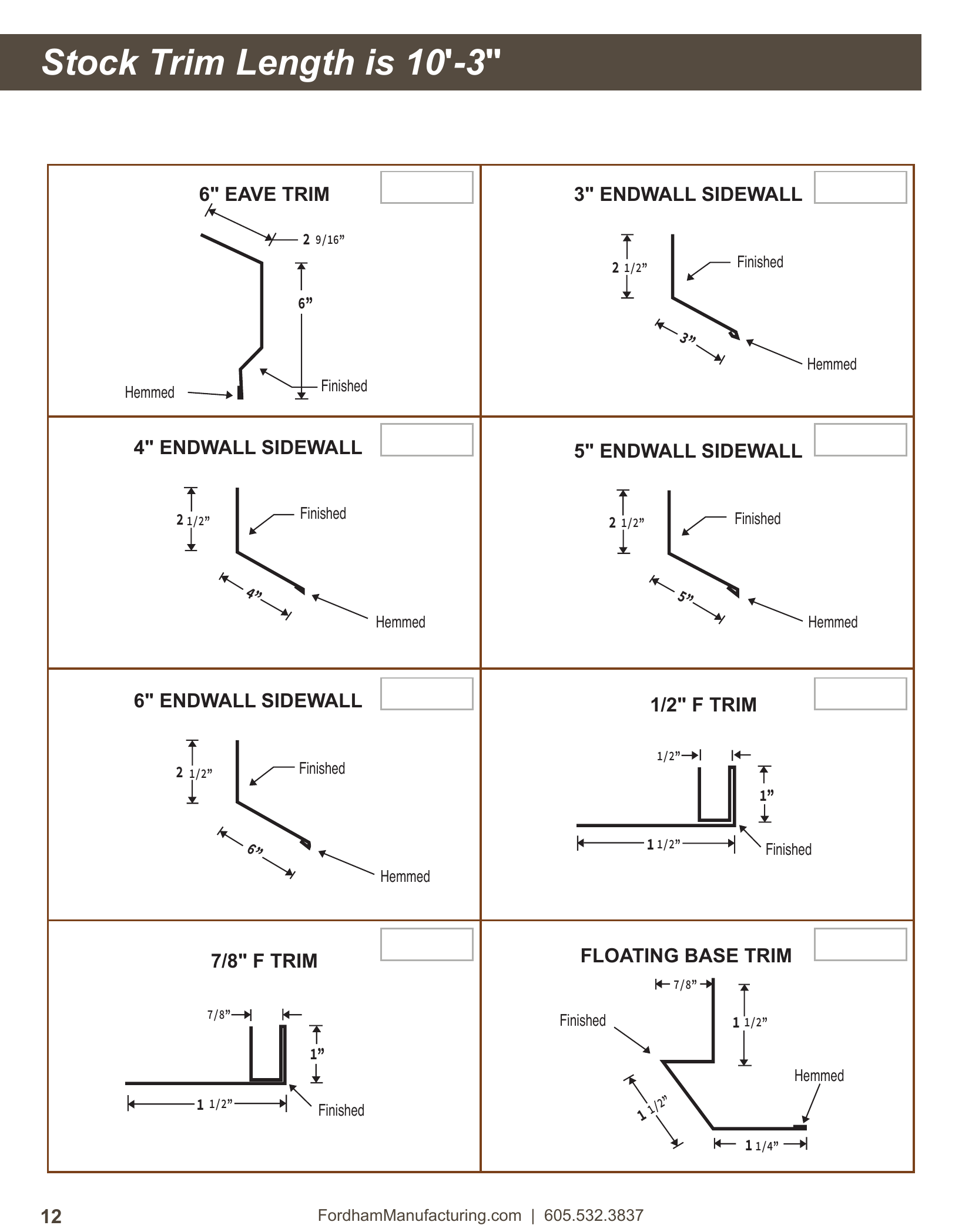

Stock Trim & Flashing — Eave Trim, Endwall Sidewall & F Trim
Shown: 6” Eave Trim, 3” Endwall Sidewall, 4” Endwall Sidewall, 5” Endwall Sidewall, 6” Endwall Sidewall, 1/2” F Trim, 7/8” F Trim, Floating Base Trim.
Eave trim, endwall sidewall trim and F trim — click image to enlarge

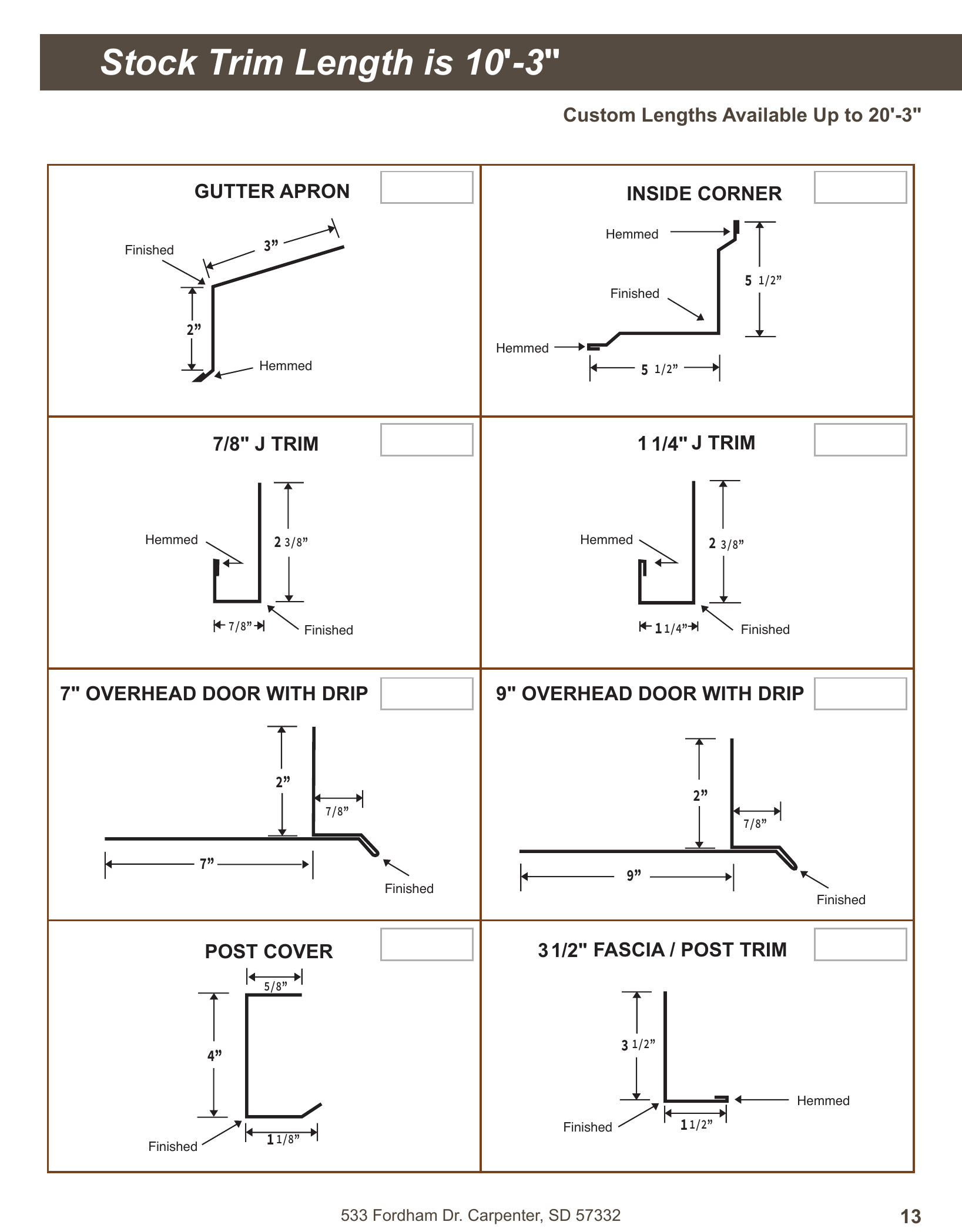

Stock Trim & Flashing — Gutter Apron, Inside Corner, J Trim & Overhead Door
Shown: Gutter Apron, Inside Corner, 7/8” J Trim, 1-1/4” J Trim, 7” Overhead Door Trim w/ Drip, 9” Overhead Door Trim w/ Drip, Post Cover, 3-1/2” Fascia / Post Trim.
Gutter apron, inside corner, J trim, overhead door trim and post trim — click image to enlarge

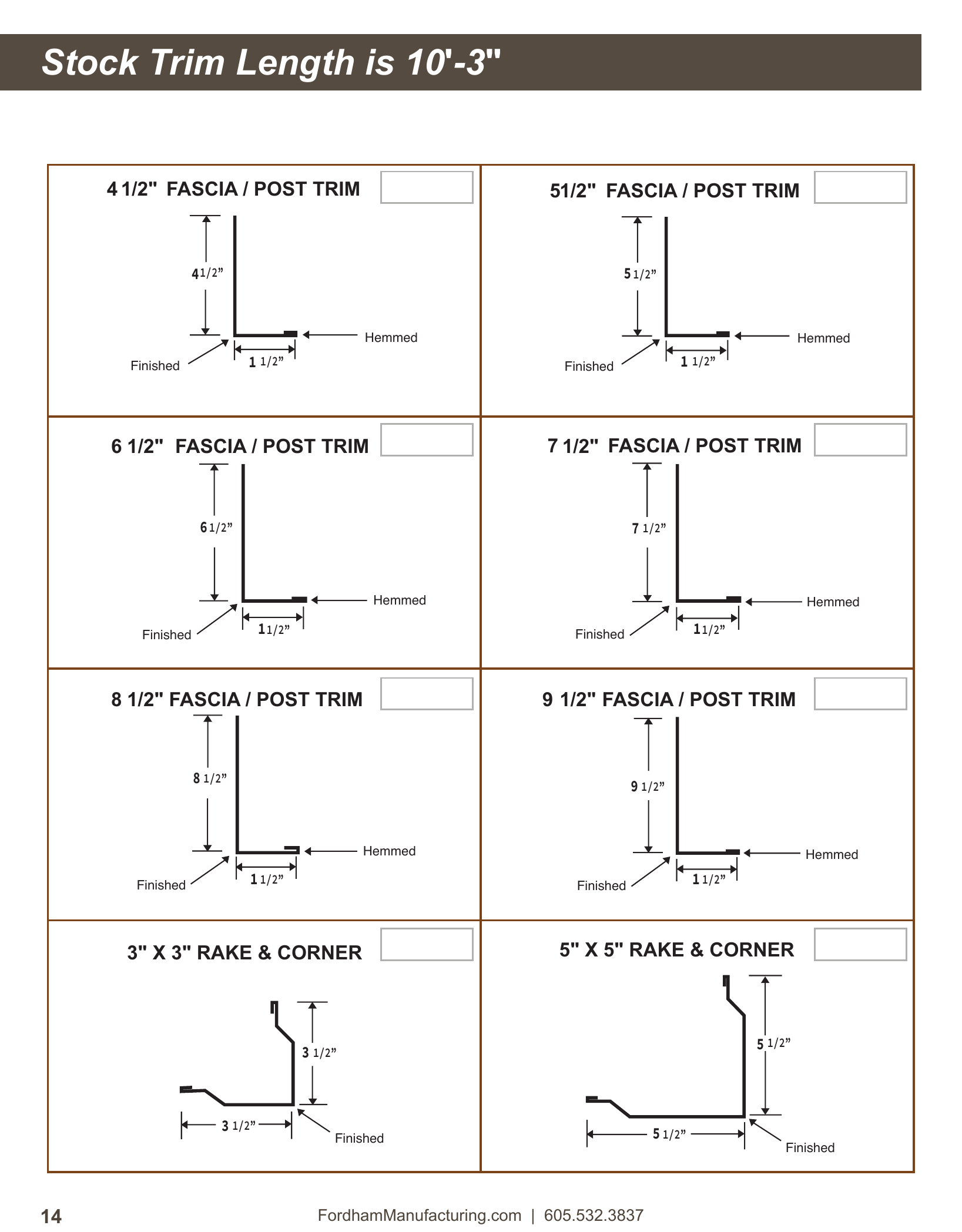

Stock Trim & Flashing — Fascia / Post Trim & Rake & Corner
Shown: 4-1/2” Fascia / Post Trim, 5-1/2” Fascia / Post Trim, 6-1/2” Fascia / Post Trim, 7-1/2” Fascia / Post Trim, 8-1/2” Fascia / Post Trim, 9-1/2” Fascia / Post Trim, 3” x 3” Rake & Corner, 5” x 5” Rake & Corner.
Fascia / post trim and rake & corner profiles — click image to enlarge

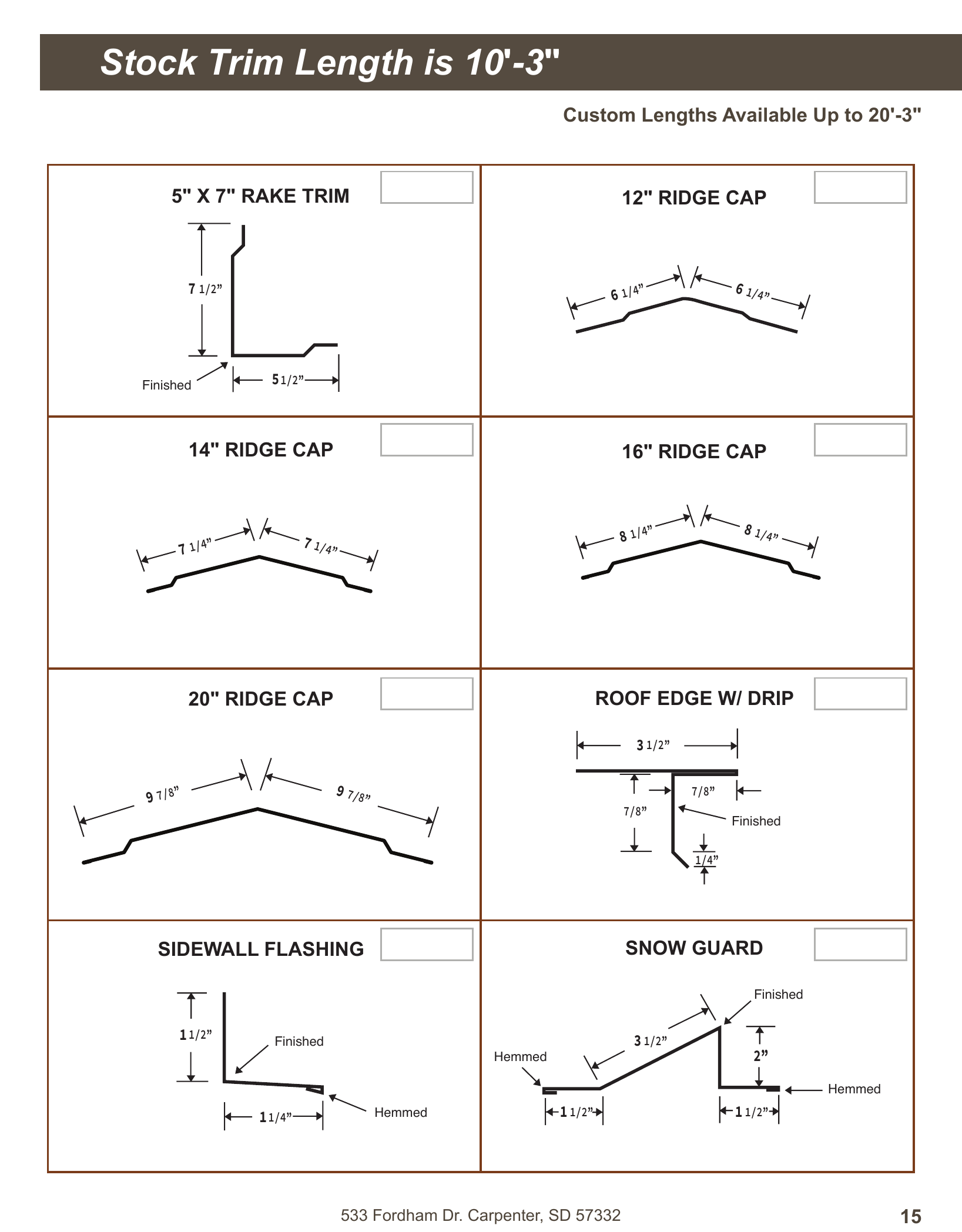

Stock Trim & Flashing — Rake Trim, Ridge Caps, Roof Edge & Snow Guard
Shown: 5” x 7” Rake Trim, 12” Ridge Cap, 14” Ridge Cap, 16” Ridge Cap, 20” Ridge Cap, Roof Edge w/ Drip Cap, Sidewall Flashing, Snow Guard.
Rake trim, ridge caps, roof edge drip and snow guard — click image to enlarge

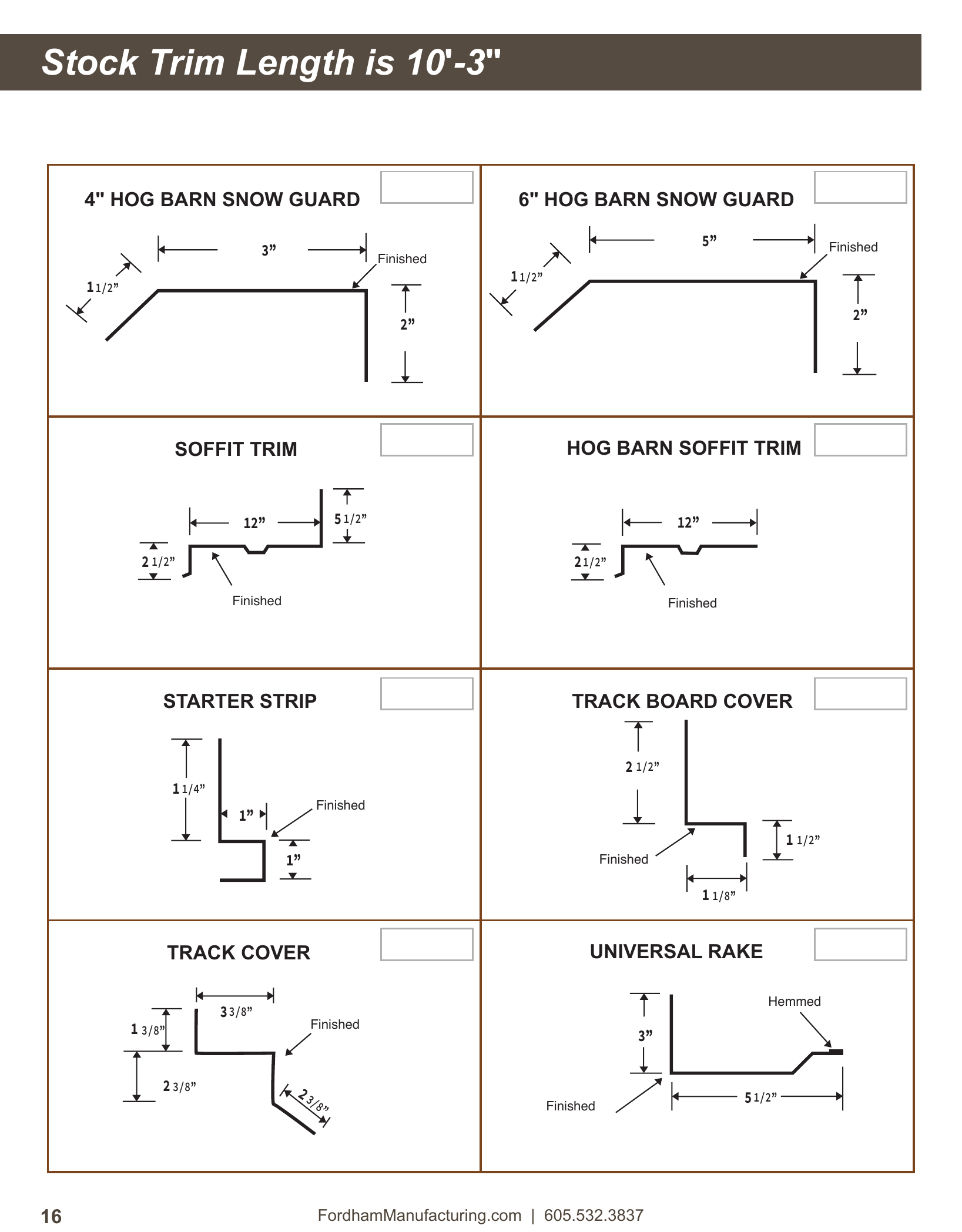

Stock Trim & Flashing — Snow Guards, Soffit Trim, Starter Strip & Track Covers
Shown: 4” Hog Barn Snow Guard, 6” Hog Barn Snow Guard, Soffit Trim, Hog Barn Soffit Trim, Starter Strip / Box Base, Track Board Cover, Track Cover, Universal Rake.
Snow guards, soffit trim, starter strip and track covers — click image to enlarge

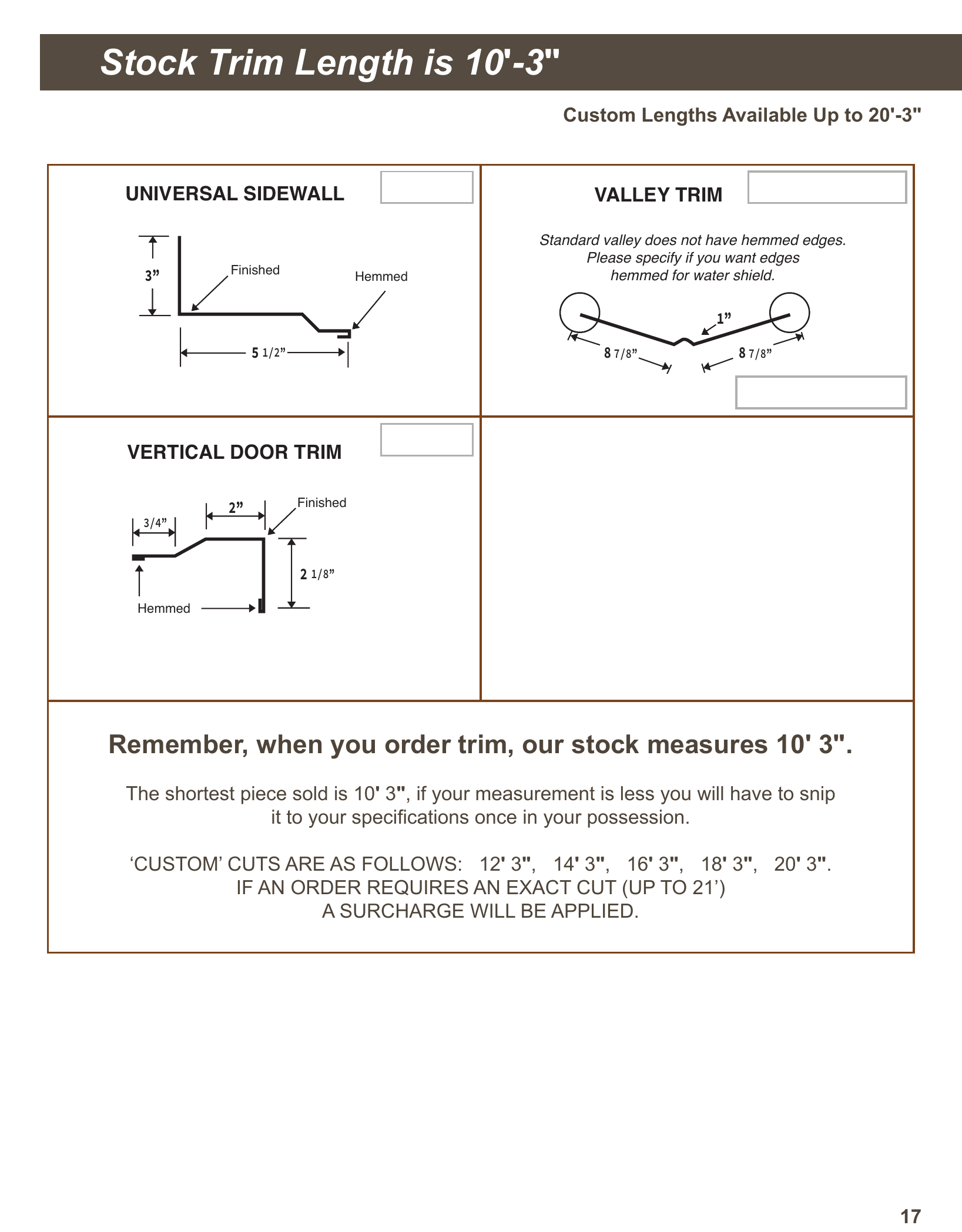

Stock Trim & Flashing — Universal Sidewall, Valley Trim & Vertical Door Trim
Shown: Universal Sidewall, Valley Trim (20” and 41” versions), Vertical Door Trim. Note: standard Valley Trim does not have hemmed edges — specify if hemmed edges are required for water shielding.
Universal sidewall, valley trim and vertical door trim — click image to enlarge
Need a custom trim profile?
Contact our team for pricing, custom lengths, lead times and color matching on any trim profile.
